Tutorial: Single-Farm XGBoost Workflow

This tutorial walks through a complete single-farm workflow using XGBoost for bias prediction and local calibration.

Prerequisites

  • WIFA-UQ installed (pixi install)
  • Example data in examples/data/KUL_LES/

Step 1: Understand the Configuration

Open examples/kul_single_farm_xgb_example.yaml:

# Key sections explained...

Step 2: Run the Workflow

cd examples
python run.py kul_single_farm_xgb_example.yaml

Step 3: Examine Outputs

results/KUL_LES_xgb/
├── processed_physical_inputs.nc    # Preprocessed resource data
├── results_stacked_hh.nc           # Model error database
├── correction_results.png          # Before/after correction
├── bias_prediction_shap.png        # Feature importance (beeswarm)
├── bias_prediction_shap_importance.png  # Feature importance (bar)
├── local_parameter_prediction.png  # Parameter prediction quality
└── cv_results.csv                  # Cross-validation metrics

Step 4: Interpret Results

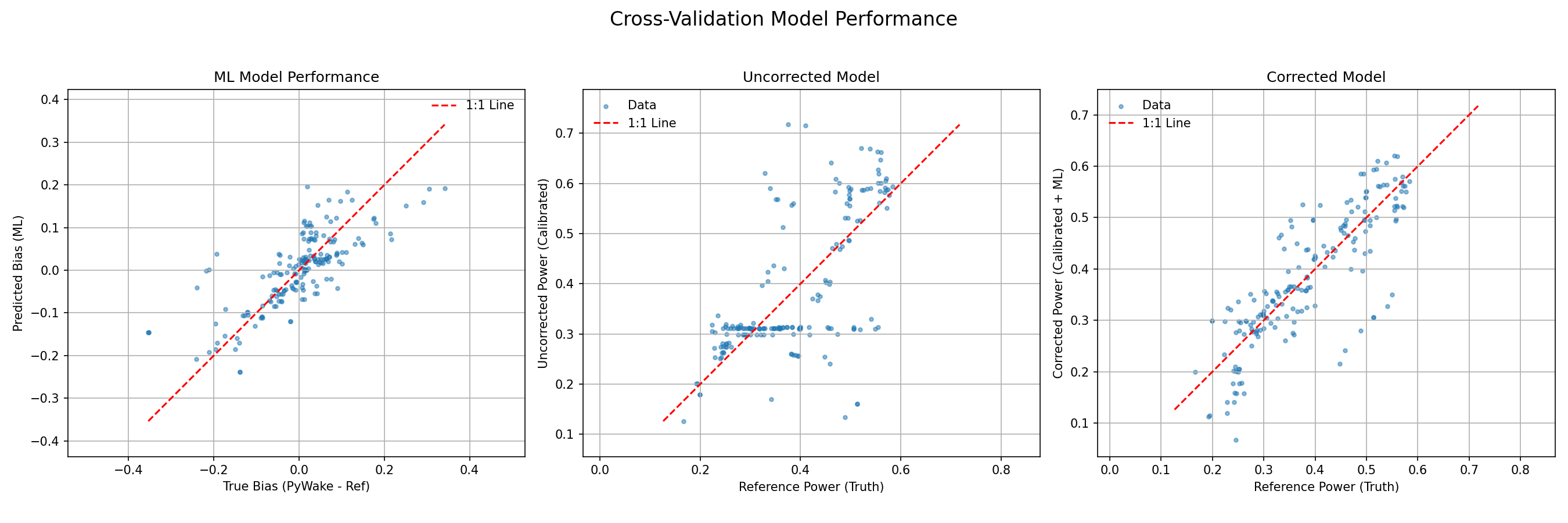

Correction Results


  • Left: ML prediction quality (predicted vs true bias)
  • Center: Uncorrected model error
  • Right: Corrected model error (should be tighter around 1:1 line)

SHAP Analysis

The SHAP plots show which features most influence bias predictions...

Next Steps

  • Try different calibrators: MinBiasCalibrator vs LocalParameterPredictor
  • Experiment with feature sets
  • Run multi-farm cross-validation
